BioGraph Infiniti Software 5.1.4
BioGraph Infiniti version 5.1.4 is compatible with Windows Vista/XP/2000 Microsoft® and Windows® 7 Home Premium, Business, Ultimate, or Enterprise, view Biograph Infiniti computer requirements
Z-score neurofeedback (5 new screens added to the EEG Suite)
Dual Threshold Feedback (useful for coherence, phase, Z-score, etc.)
Built-in Programmable Respiration Pacer (6 new screens added to the Physiology Suite)
Heart Rate Variability (HRV) Resonant Frequency Detection (6 new screens added to the Physiology Suite)
Pulse transit time feedback (delay between EKG R-spike and finger pulse) (3 new screens)
The basic software functions for Slow Cortical Potentials (SCP), Evoked and Event-Related Potentials (EP/ERP), Reaction Time Testing and Joint Time Frequency Analysis (JTFA) are also be available.
Some of over 100 new features:
Quick Toggle for Feedback Conditions (up or down training)
Enhanced DVD Feedback Settings
Smoothing on Screen Instruments
New Connection Instrument (for 3rd party games or network based multimedia applications)
Improved Percentage Instrument (automatic threshold)
True Dual Monitor Support (with control of client monitor from clinician’s monitor on-the-fly)
Session Replay: replay at 2X, 4X or 8X speed or jump to specific time, activity or event marker.
New Reporting Functions:
Compatible with Robert Thatcher's NeuroGuide EEG software with easy export to NeuroGuide for EEG analysis
Trend Graph instrument enhancements
Printouts of impedance measures
Pre-defined event marker labels can be printed
A table of cut-off frequencies can be included in report
JTFA: Joint Time Frequency Analysis (Gabor and Adaptive Spectrograms)
EEG Phase and Amplitude Asymmetry added to the connectivity measures (Coherence)
HRV related calculations: NN50 & pNN50, etc.
New epoch settings for computation of percentage of baseline or percentage of maximum voluntary contraction (MVC), etc.
Area under the curve statistics
New Audio Feedback Options:
Improved MIDI Tone Feedback Options
Volume Level Feedback
More Alarm Modes
Expanded “Edit Virtual Channel” Options (useful for DVD and in-session trend)
Copy and Paste of Screen Instruments
A script can be linked to an Excel report file
Hiding script screens from the screen list of Open Display session
More Shortcut Keys
Thought Technology’s BioGraph Infiniti Multimedia Biofeedback and Data-acquisition Software offers endless configuration options and powerful Developer Tools to meet the needs of beginner, intermediate and advanced users.
BioGraph Infiniti monitors up to 40 sensors simultaneously, using combinations of the 2 channel ProComp2, the 8 channel ProComp Infiniti, the 5 channel ProComp5 Infiniti, or the 10 channel FlexComp Infiniti. Many Suites have channel sets for multiple encoder types. Since the sensors are external, there is practically no hardware limit to the type of sensor configuration.
The BioGraph Infiniti is a multi modality software system which allows you to mix and match physiological measures, like EEG and Heart Rate Variability (HRV) to get the most comprehensive view on sympathetic and parasympathetic activity. Other sensor types include EMG, Skin Conductance, Temperature, Respiration, Blood Volume Pulse, EKG and more.
With a number of specialized application suites for EEG, Physiology, EMG and ergonomics, the Infiniti System provides you with out-of-the box clinical tools that easily allow you to assess, train and follow-up on client outcome.
The powerful Infiniti Developer Tools come free with the BioGraph Infiniti system. These tools offer a Channel Editor, with a library of over 50 computational algorithms and up-to 255 virtual channels, a Screen Editor, with 25 display instruments (with no limit to the amount of instruments you can place on a screen and the ability to design screens for multiple monitors) and a Script Editor, to help you easily standardize assessment and training protocols.
Child Bar Graph provides the clinician direct control over the client side instruments
Change cutoff frequencies on the fly
Integrated percentage of time above threshold calculation
Immediate and discrete feedback on one screen

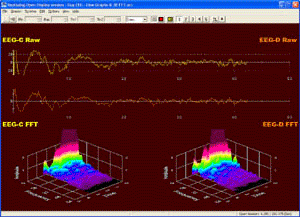

Real time 3D and 2D FFT
Counter Animation : ideal reward instrument
The new BioGraph Infiniti software is packed with features designed to make your clinical work easier.
Switching between 5 feedback environments in a single session:
To make sessions more engaging and challenging the system allows you to load up-to 5 display screens for each session. To facilitate reviewing, the software automatically ‘time marks’ screen-switching events and places a marker on the review graphs.
Editing display screens on the fly:
While in recording or replaying mode, you can rapidly access either of the full or lite screen editors, by stopping the session, selecting a menu item, making your changes, closing the editor and restarting your session right away! The switch is virtually transparent.
Editing virtual channels settings on the fly:
To easily modify smoothing factors, filter cutoff frequencies, thresholds, counter targets, etc. simply pause the session, select a menu item, make the change and un-pause. It’s that simple!
Easy customizing of reports:
One-click selection of report options, including session graphs, table of statistics, table of event markers and session notes. Choose to fit the whole session on one graph or print multiple graphs. Easily add a clinic name and a treatment code to every session report.
Compatibility with a number of third-party products:
Ability to export sensor or statistical data to ASCII files. Ability to interface with systems like the Cognysis DVD and gaming devices, HEG, Peter Van Deusen’s TLC Assess program, Dr. Steve Padgitt’s and George Martin’s animation packages, and many others.
Superior Technology and expandability:
BioGraph Infiniti integrates the most recent DirectX graphics technology and supports the addition of customized CDs developed by expert clinicians and authorized biofeedback distributors. BioGraph Infiniti is available in various languages.
